Medium Battle Case with Shelving System

Medium Battle Case with Shelving System

The Battle Case was born to fill a gap in the market - between fragile cases and expensive premium options.

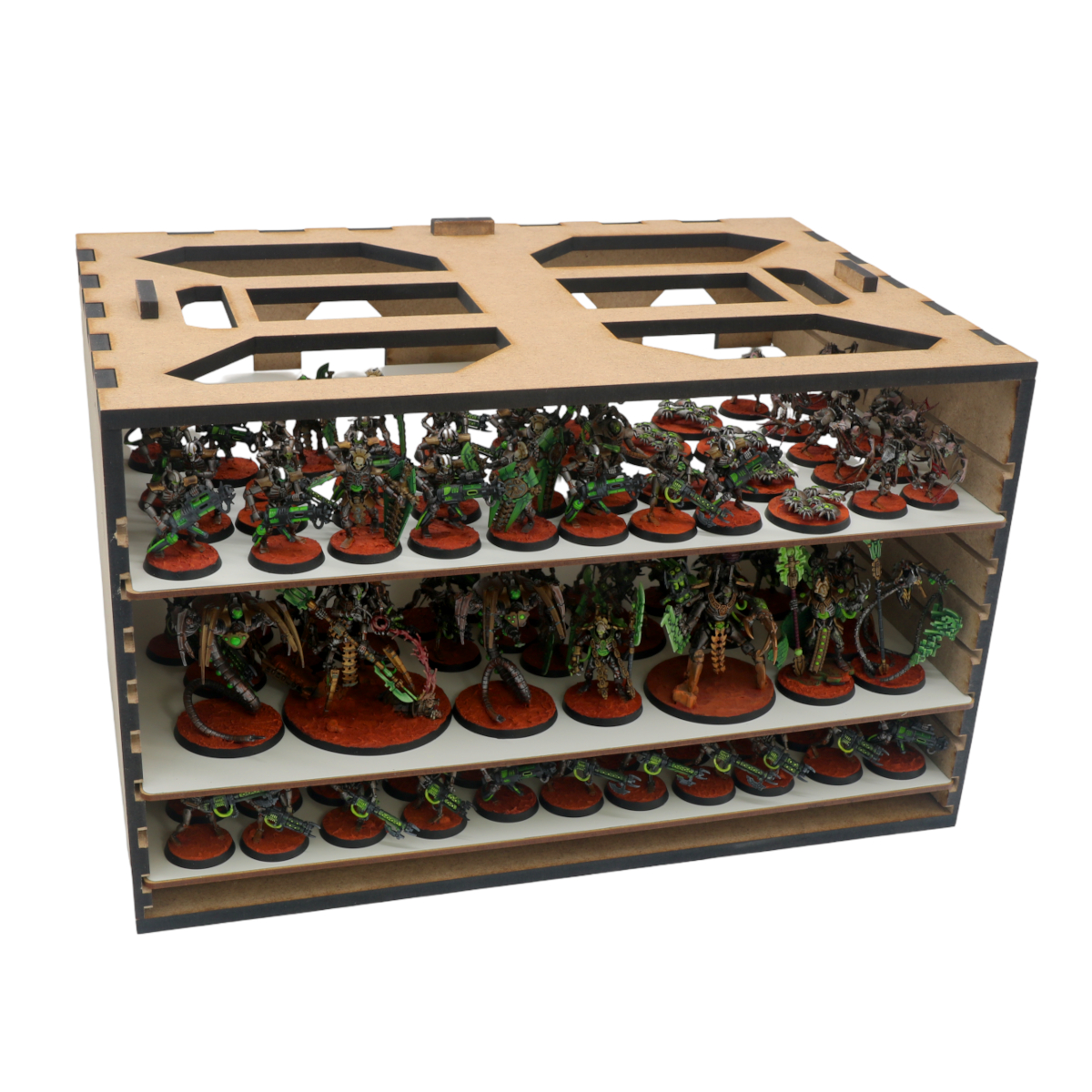

Designed as a natural extension of the SafeandSound system, it offers robust construction, flexible storage and modular expandability — perfect for displaying your collection at home or securely transporting magnetized miniatures.

Key Features & Included Components

Smart Multi-Level Storage with Large Trays

The shelving insert features eight 4 mm-high tray slots. A 40 mm gap separates the bottom slot from the second, while the remaining slots are separated by 22 mm gaps, providing 26 mm height intervals. Above the top slot, there is 40 mm of clearance - allows flexible setup.

Included in the set:

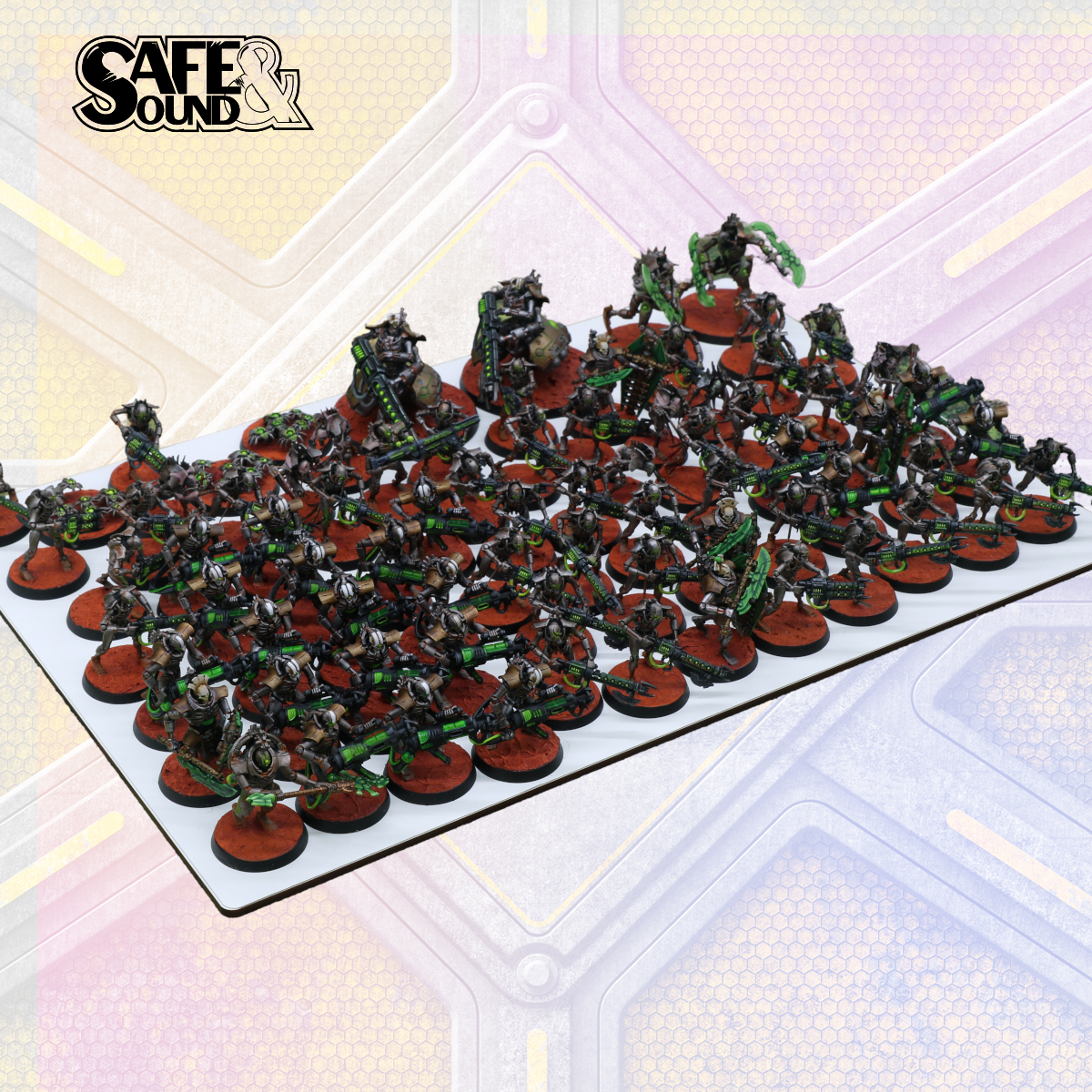

• 3 large HDF trays measuring 397 × 269 mm and 3 mm thick
  • each tray includes a pre-glued 0.4 mm galvanized metal plate
• 6 universal connectors — used as rear supports for loaded trays or as stacking links to connect two Battle Cases vertically
• the system is expandable and can accommodate up to 8 trays in total, although most armies will typically use 4–5 trays to provide enough clearance for their miniatures

Why Use a Galvanized Metal Plate Instead of Ferromagnetic Foil?

The 0.4 mm galvanized metal plate provides significantly stronger magnetic pull, particularly for heavier models or smaller magnets, making it far more reliable than typical foil-based alternatives.

Durable Construction, No Gimmicks

• The 8 mm-thick MDF frame provides long-term durability, structural rigidity and high load-bearing capacity.
• With no hinges or moving plastic parts, the simple and dependable design is ideal for regular transport and long-term storage.

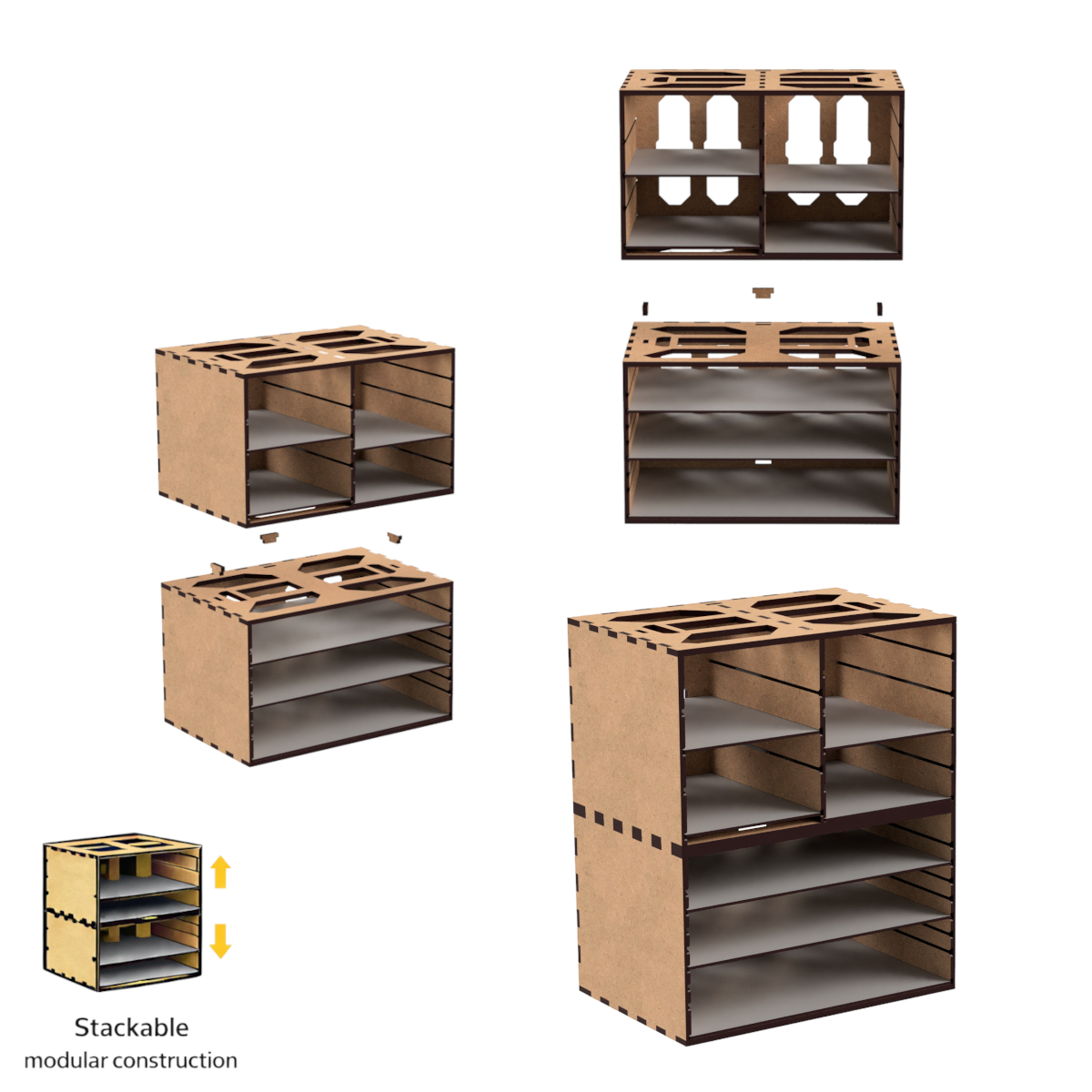

• The connectors also serve as stacking links, allowing multiple Battle Cases to be combined into larger storage towers.

Part of the SafeandSound System

The Medium Battle Case is fully compatible with other SafeandSound transport and storage solutions:

• use it as a standalone storage or display unit
• combine it with a SafeandSound transport bag to create a complete carry system
• stack it with another Battle Case using the included connectors
• use the trays with other compatible products, including the Magnetic Case with Shelving System and ULTIMAG CASE

Assembly & Dimensions

Assembly takes approximately 5 minutes and requires standard wood glue. Fit the components together, apply the glue and press them firmly into place.

• External dimensions: 406 × 252 × 277 mm
• Internal dimensions: 390 × 234 × 269 mm
• Maximum usable model height: approximately 230 mm when the first tray is placed at the bottom
• Tray size: 397 × 269 mm
• Total tray thickness with metal plate: 3.4 mm
• Weight: approximately 2 kg without trays; each tray weighs approximately 0.5 kg
