MAGNETIC TOURNAMENT TRAY - SMALL, BASIC EDITION

Magnetic Tournament Tray – Small, Basic Edition

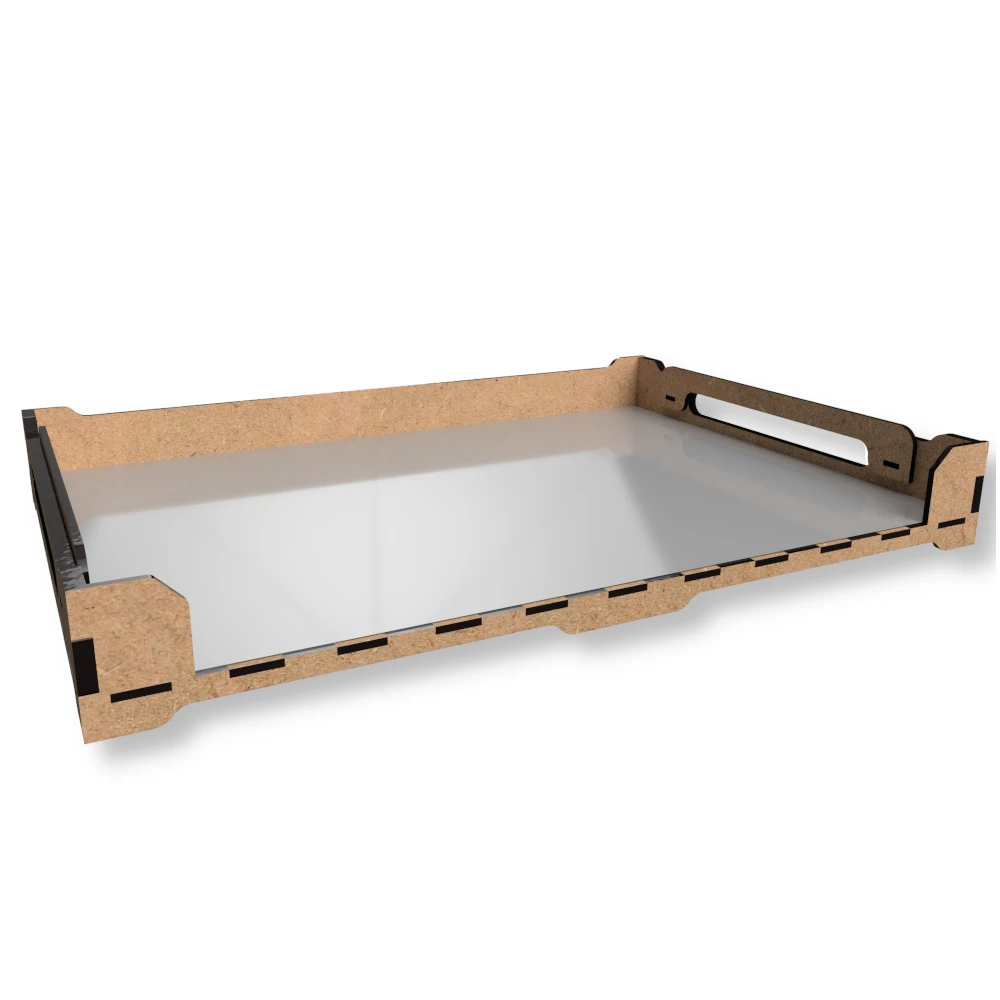

Move your army from storage to the gaming table in one trip and start playing without unpacking and arranging every miniature again. The Magnetic Tournament Tray - Small keeps models organised on a strong magnetic surface, making it easier to carry an entire force between games, tables and storage areas.

Its low-profile, open design provides quick access to every miniature while keeping the full 383 × 262 mm magnetic area available. With a typical arrangement, the tray holds approximately 90 models on 32 mm bases, although actual capacity will depend on the size, shape and positioning of the miniatures.

Key Features & Included Components

Factory-Fitted Metal Plate

The tray comes with a white, 0.4 mm thick galvanised metal plate already attached to its base. Miniatures fitted with magnets under their bases hold directly to the metal surface, helping them remain in position while the tray is being carried.

A solid metal plate provides a considerably stronger hold than commonly used ferromagnetic sheets, offering better support for heavier miniatures and models fitted with smaller magnets.

Fast Access to Your Models

The open front makes it easy to reach the miniatures and grip them by their bases. Models can also be carefully slid towards the edge of the metal plate before being lifted, reducing the risk of pulling a miniature away from its base or damaging delicate parts.

Integrated handles provide a secure, comfortable grip when carrying the tray with models in place.

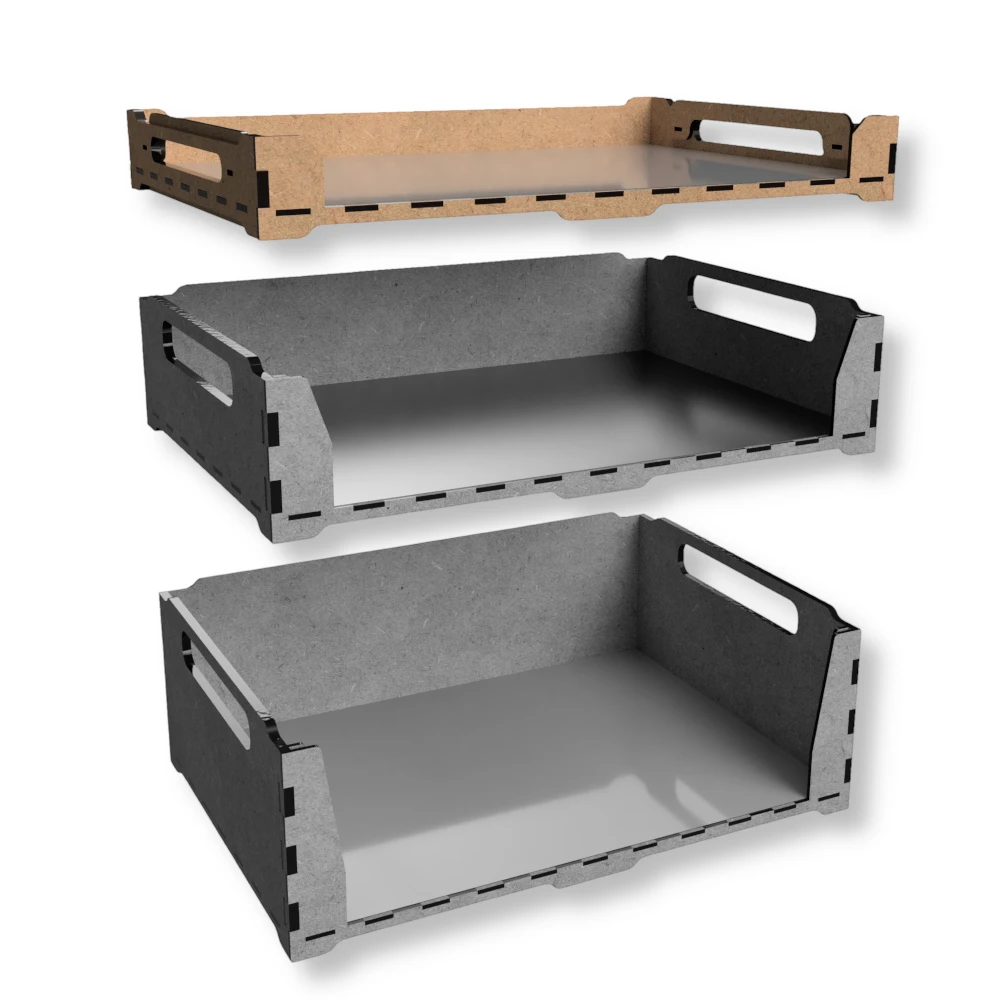

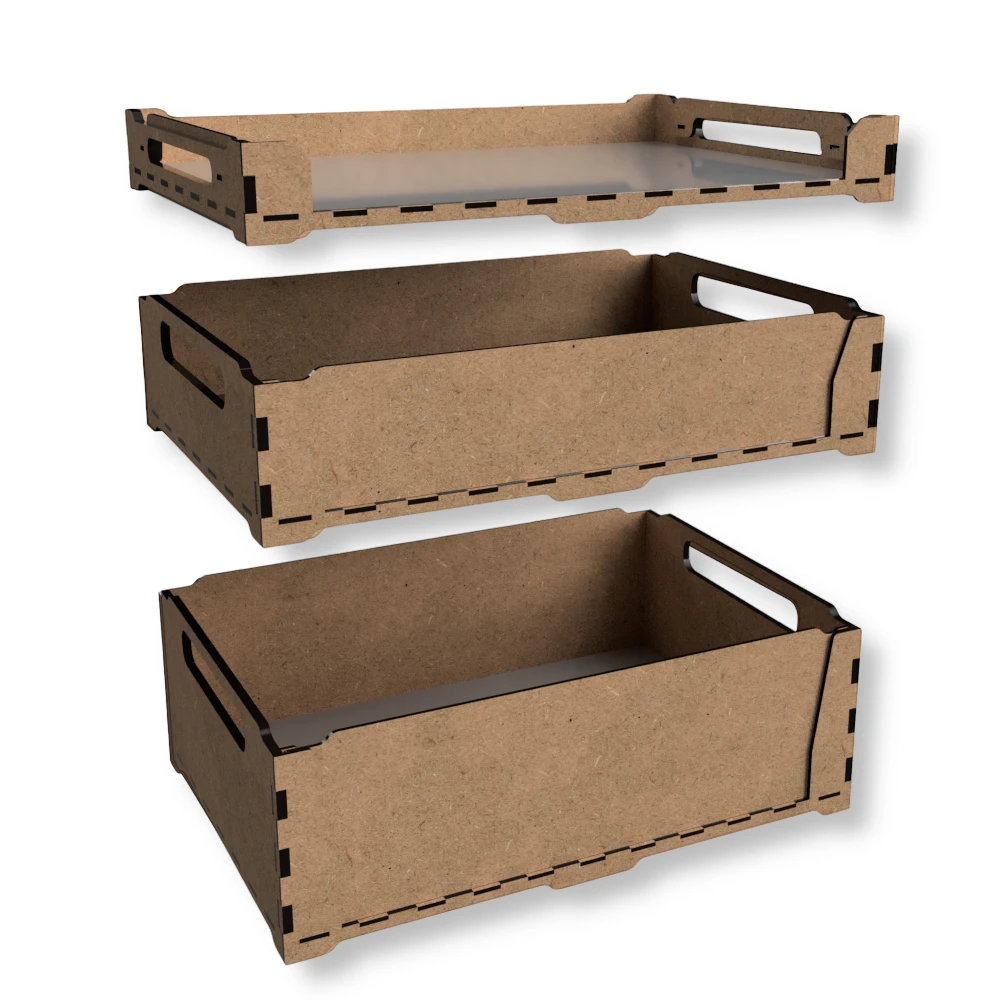

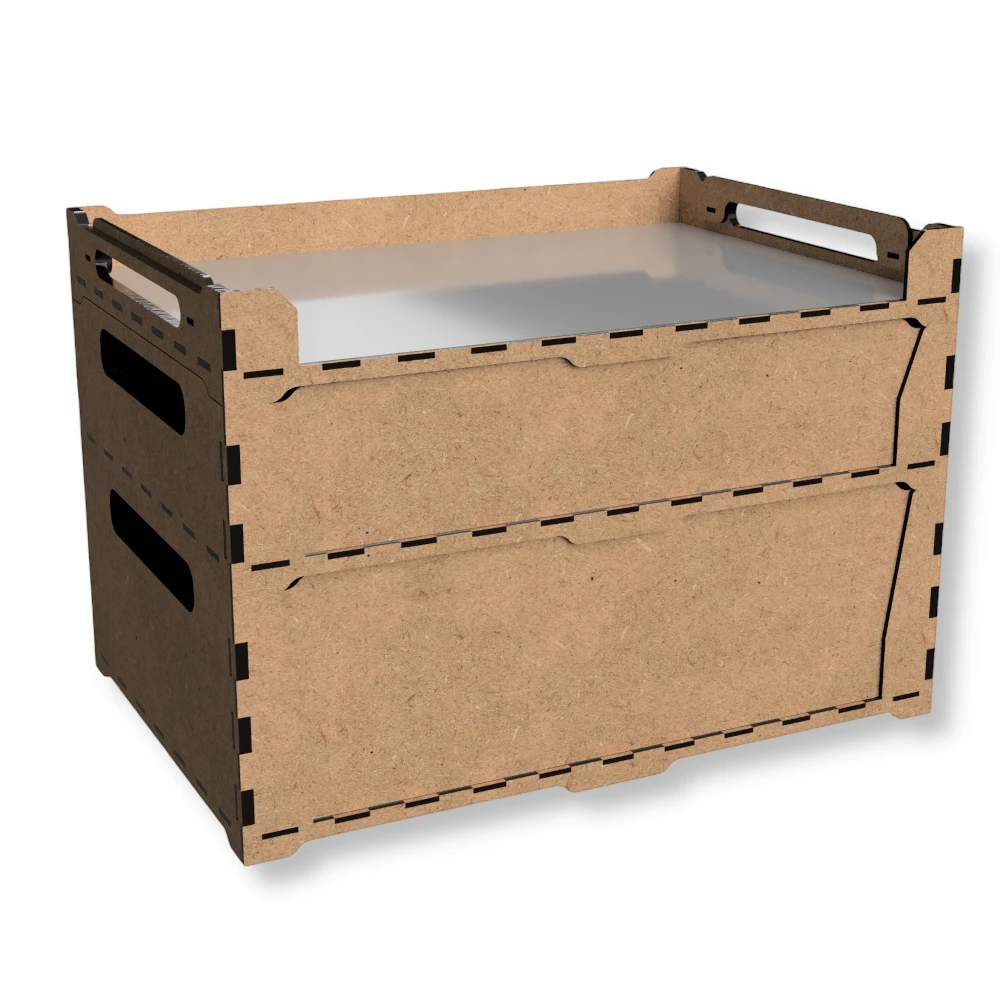

Stackable Three-Height System

All SafeandSound Magnetic Tournament Trays share the same 396 × 270 mm footprint, allowing Small, Medium and Large trays to be combined into a stable transport system.

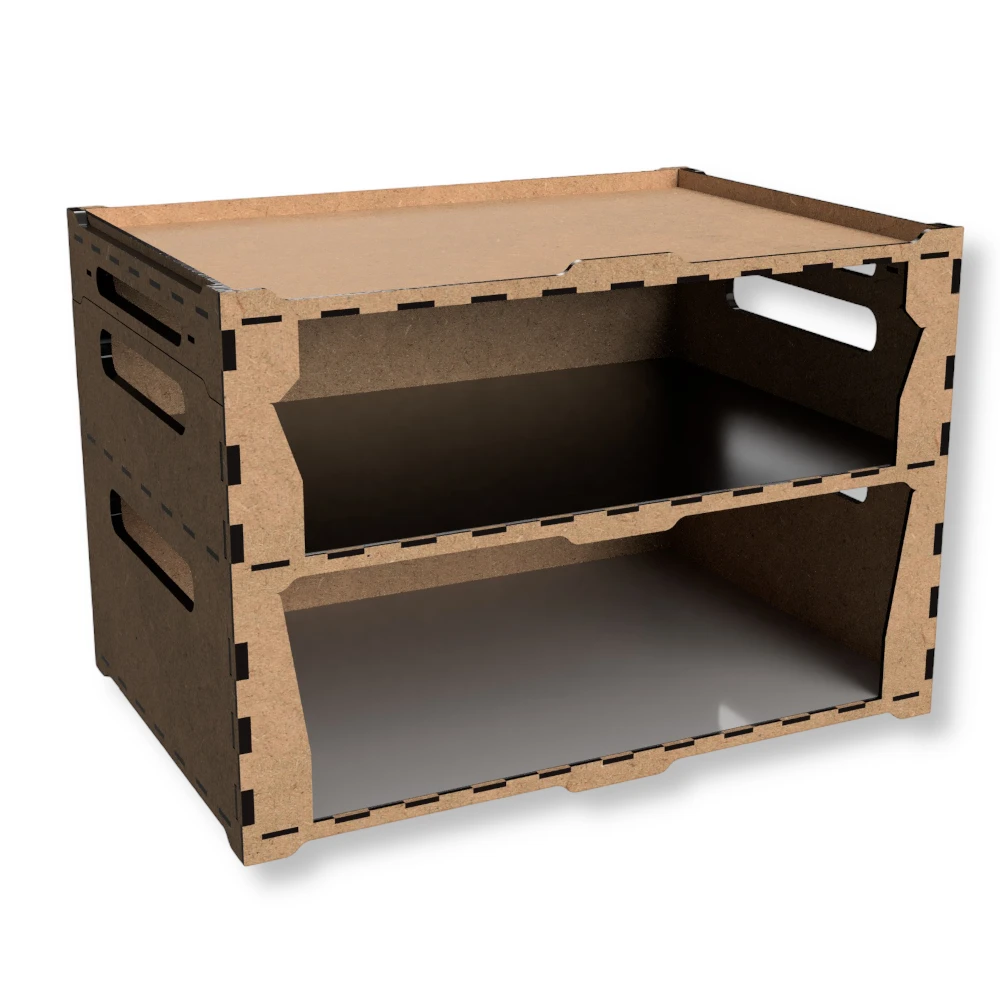

The Small tray is designed primarily as the top level of a stack. It can also be turned upside down and used as a protective lid, covering the models stored in the trays below. This makes it possible to build a set around the actual height requirements of your army rather than using the same amount of space for every unit.

Strong HDF Construction

The main structural components are made from precision-cut 3 mm HDF, while the side walls are 6 mm thick for additional rigidity and stability during carrying.

The Basic Edition is supplied in the natural colour of HDF, with darker edges created during laser cutting. It can be used unfinished, or the surface can be sealed by the user with a suitable varnish for additional protection against wear and moisture.

Included in the Set

• precision-cut HDF components for one Small tray,

• factory-fitted white galvanised metal plate.

Compatible with the SafeandSound Magnetic Case

The tray is designed to fit inside the lightweight SafeandSound Magnetic Case together with other trays from the system.

The case can accommodate:

• 3 Medium trays,
• 2 Large trays,
• 1 Small, 1 Medium and 1 Large tray,
• or any other tray configuration with a combined height of up to 282 mm

Assembly

Assembly takes approximately 5 minutes, excluding workspace preparation and the time needed to read the instructions. The metal plate is already attached, so only the HDF structure needs to be assembled using standard wood glue.

We recommend assembling the tray without glue first to check the position and fit of every component. The parts can then be glued together and held firmly in place.

• initial bonding time: approximately 12–15 minutes,

• full curing time: approximately 24 hours.

Size & Dimensions

• external dimensions: 396 × 270 × 50 mm,

• usable metal plate area: 383 × 262 mm,

• clearance from the metal plate to the upper edge of the side walls: 35 mm,

• metal plate thickness: 0.4 mm,

• main HDF component thickness: 3 mm,

• side wall thickness: 6 mm,

• approximate capacity: 90 models on 32 mm bases.
